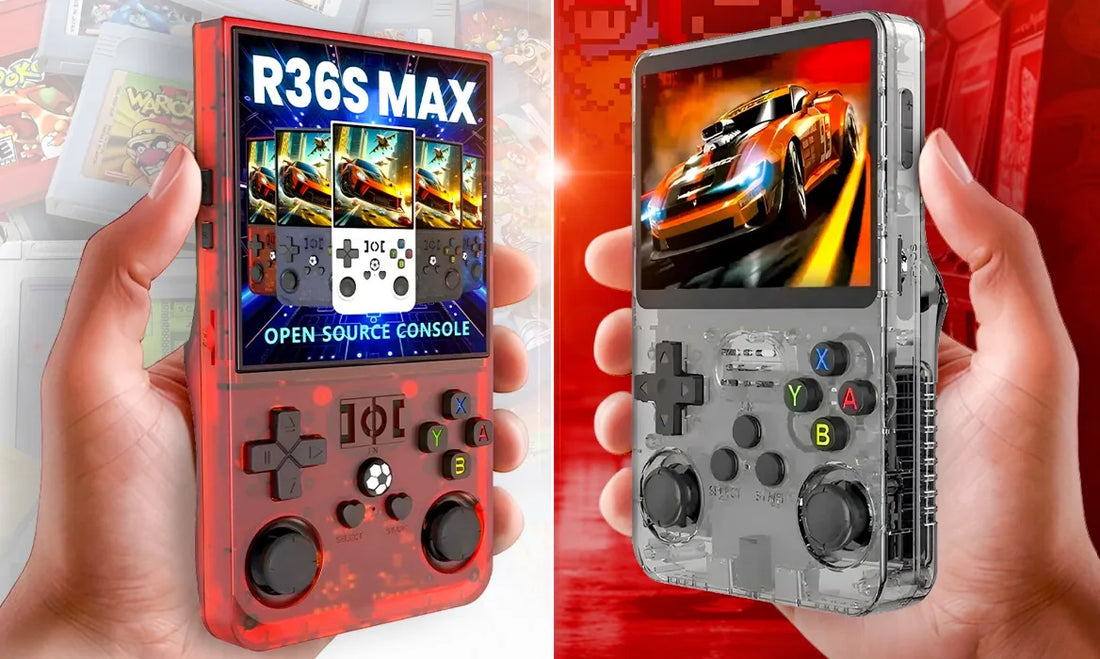

R36S vs R36Max: Which Portable Handheld Fits Your Playstyle?

Before we compare frame rates and display math from our complete hands-on R36S hardware review.

1. What Exactly Sets Apart the R36S vs R36Max in Hardware Architecture?

Both handhelds share the exact same Rockchip RK3326 CPU, Mali-G31 GPU, and 1GB DDR3L RAM, differing only in screen shape and firmware.

One of the most widespread myths on third-party marketplaces is that the R36Max upgrades the internal processor to a Rockchip RK3566 with 2GB of RAM. To verify that claim, we opened the rear shell and inspected the PCB markings directly on our bench.

As shown directly on the laser-etched silicon in the teardown photo above, the motherboard runs on the Rockchip RK3326, paired with a Rockchip RK817-1 power management IC and two Micron D9PXW DDR3L memory chips totaling 1GB of RAM. According to the Rockchip processor architecture specifications, the RK3326 combines four 64-bit ARM Cortex-A35 CPU cores clocked at 1.5GHz with a dual-core ARM Mali-G31 MP2 GPU.

Because the CPU, GPU, and RAM are identical on both boards, neither handheld has a raw computing advantage. What changes how your games look and run is the resolution of the IPS screen attached to that board and the Linux operating system on the MicroSD card.

"Tested on our unit" means we checked it on a device we own. "Manufacturer spec" means the maker states it and we haven't verified it ourselves. "Community reports" means players report it, and results can vary.

2. How Do R36S vs R36Max Handle N64 and PSP Emulation Under Load?

Because its 640×480 screen pushes 41% fewer pixels than the 720×720 R36Max, the R36S holds steadier frame rates in 3D N64 and PSP games.

Boot up an 8-bit or 16-bit cartridge classic like Super Mario World on SNES or Sonic the Hedgehog 2 on Sega Genesis, and the RK3326 chip holds a locked 60 FPS on both machines. The performance gap opens up as soon as you launch fifth-generation 3D consoles like Nintendo 64, Sega Dreamcast, and PlayStation Portable.

Use this three-step bench checklist to verify how these specs behave on a real unit:

1. Verify Shared RK3326 Silicon: Both motherboards run the exact same quad-core Rockchip RK3326 CPU (1.5GHz), Mali-G31 MP2 GPU, RK817-1 power IC, and 1GB DDR3L RAM (2× Micron D9PXW).
2. Compare 4:3 vs 1:1 Pixel Load: The R36S 3.5-inch 4:3 panel (640×480, 307,200 pixels) fits PS1, SNES, and N64 edge-to-edge while pushing 40.7% fewer pixels than the R36Max 4.0-inch 1:1 panel (720×720, 518,400 pixels).
3. Confirm Unlocked ArkOS 2.0: Press START on the main menu to check that your handheld boots genuine ArkOS 2.0 on TF1-OS with FN + START hotkeys rather than a locked EmuELEC clone build.

With those three hardware checks in mind, here is how the numbers play out in daily gaming:

On a genuine R36S running official ArkOS 2.0 firmware for RK3326, you can switch emulator cores on a per-game basis, choosing standalone Mupen64Plus or Libretro Mupen64Plus-Next and tuning settings through our R36S ArkOS hotkeys and shortcuts guide. Most R36Max consoles ship with a locked EmuELEC clone build that hides standalone emulator menus or resets custom speed hacks whenever you reboot.

"Tested on our unit" means we checked it on a device we own. "Manufacturer spec" means the maker states it and we haven't verified it ourselves. "Community reports" means players report it, and results can vary.

The Fake-Spec & EmuELEC Clone Trap

3. Aspect Ratio Reality Check: 3.5-Inch 4:3 vs 4.0-Inch 1:1 Square Screen

Displaying 4:3 PlayStation 1 or SNES games on the square R36Max produces a 3.54-inch image with black bars, matching the R36S screen width.

Screen geometry is the most misunderstood number on handheld spec sheets. Shoppers naturally assume that jumping from a 3.5-inch screen to a 4.0-inch screen gives them a wider picture for Crash Bandicoot, Chrono Trigger, or Tekken 3. Doing the physical screen math tells a different story.

• On the R36S (3.5-inch diagonal at 4:3 aspect ratio): The physical viewing area measures 2.80 inches wide by 2.10 inches tall (640×480 pixels). Every major home console from the NES, SNES, and Sega Genesis through the PlayStation 1, Nintendo 64, and Dreamcast was built for 4:3 CRT TVs, as noted in the Libretro PCSX ReARMed core documentation. On the R36S, those games fill 100% of the display glass with zero black bars and zero distortion.
• On the R36Max (4.0-inch diagonal at 1:1 square aspect ratio): Because a 720×720 screen is a square, its physical viewing area measures 2.83 inches wide by 2.83 inches tall. That 2.83-inch width is virtually identical to the 2.80-inch width of the R36S.
• What happens when you boot 4:3 or 16:9 games on the R36Max: Keep the authentic 4:3 ratio (720×540) and the game is boxed in by thick black bars on the top and bottom, leaving an active 3.54-inch diagonal image. Turn on full-screen stretch to fill the 720×720 square and every character is stretched 33% taller than normal. Boot a 16:9 widescreen PSP game (720×405) and 44% of the square screen turns into empty black borders.

When you browse our verified 15,000+ R36S pre-installed games list, over 80% of the catalog comes from 4:3 home consoles, 3:2 Game Boy Advance games, and 16:9 PSP titles. Growing up with a Super Nintendo on a 4:3 tube TV, seeing 16-bit sprites stretched tall on a square panel immediately feels off, which is why the 640×480 panel on the R36S remains our daily driver.

4. Which Ergonomic Design Wins the R36S vs R36Max Daily Usage Test?

The compact 163g R36S shell slips into a jacket pocket easily and benefits from far broader community ArkOS 2.0 recovery support.

Both consoles use a vertical Game Boy layout with dual bottom-mounted analog sticks, a cross D-pad, ABXY buttons, and four rear shoulder buttons (L1/L2 and R1/R2). Neither model ships with factory Hall Effect magnetic sticks or built-in 5GHz Wi-Fi. Both use standard potentiometer joysticks and connect to external Wi-Fi dongles through the bottom USB-C OTG port.

In daily play, three practical ownership differences stand out between the two units:

• Pocketability vs Shell Size: Measuring 130 × 83 × 21 mm, the R36S slides into a jacket or jeans pocket without catching. The R36Max uses a wider, taller frame to fit the 720×720 panel and 4,000mAh cell, which gives large hands a bit more grip height on the D-pad but feels bulkier in a pocket.
• Dual MicroSD Card Slot Reliability (TF1-OS + TF2-GAME): On our verified R36S units, keeping the Linux operating system on TF1 and ROM files on TF2 makes following our step-by-step ArkOS firmware update guide quick and safe without touching your game saves.
• Boot Recovery & .dtb Screen Support: Standard R36S boards use documented Panel 1 through Panel 4 .dtb display timing files. If a card ever corrupts, you can restore the system in minutes using our R36S black screen and boot fix guide. Many R36Max boards require non-standard 720×720 panel files that cause a black screen or inverted controls if you flash standard community images.

5. Who Should Upgrade in the R36S vs R36Max Decision Matrix?

Because both machines run on the same RK3326 processor and 1GB RAM, moving from an R36S to an R36Max is a screen swap, not a speed upgrade.

When I test handhelds at home with my 7-year-old daughter, her favorite games are 16-bit platformers and PlayStation 1 kart racers. On those systems, having the game fill the screen cleanly without confusing black bars or laggy menus matters far more than a bigger shell. Match your pick to the library you actually play:

• Choose the R36S (3.5-Inch 4:3 IPS + ArkOS 2.0) if: You play PlayStation 1, Nintendo 64, SNES, Sega Genesis, Dreamcast, GBA, or PSP; you want steadier 3D frame rates with 40% lower GPU pixel load; and you want an unlocked ArkOS 2.0 handheld where you can easily expand your collection using our guide on how to add games to the R36S.
• Consider the R36Max (4.0-Inch 1:1 IPS) only if: Your personal playlist is 80% original Game Boy, Game Boy Color, Pico-8, and vertical arcade shooters, and you are comfortable staying on stock EmuELEC firmware.

Ready to pick up a pocket console that plays classic 4:3 games the way they were meant to look? Every R36S shipped by 2BlueBox is bench-checked for genuine RK3326 silicon, pre-loaded with ArkOS 2.0 and 15,000+ games, and backed by our 30-day return guarantee.

Frequently Asked Questions (FAQ)

Conclusion

Whether you are commuting with PlayStation 1 RPGs or reliving 16-bit arcade action, knowing what sits underneath the plastic shell saves you from paying extra for rebadged hardware. For classic 4:3 home console libraries and reliable ArkOS 2.0 support, the standard R36S remains the smarter, smoother-running pocket handheld.

Happy gaming, and enjoy true 4:3 retro classics on the go - Liam Parker, 2BlueBox Hardware Bench.
