R36S Battery & Charging Guide: Fix R36S Not Charging, Safe 5V Charging Rules & Replacement Specs

Picture unboxing a pocket handheld and plugging in your phone charger before a trip. Seeing no charging light can trigger an instant panic. Fortunately, almost every R36S charging issue comes down to two simple hardware mistakes. You might be using a modern fast charger, or you plugged into the wrong bottom port. Below, you will find the exact 5V charging rules, LED status codes, and 804065 battery replacement specs.

R36S Not Charging: The Two Mistakes Behind 90% of Dead-Battery Scares

Most R36S not charging issues happen when players plug a USB-C to USB-C fast charger into the console or use the right-side OTG port instead of the left DC port.

Look closely at the bottom edge of the 2Bluebox R36S Handheld ($79.99). You will see two identical USB-C ports flanking the 3.5mm headphone jack. They share the same connector shape. However, each port performs a completely different job on the motherboard.

Before troubleshooting further, keep this quick-reference charging and power cheat-sheet in mind:

According to the Handhelds Wiki R36S Troubleshooting Guide, two cable mistakes cause nearly every charging complaint.

First, players plug in a USB-C to USB-C fast charger. Modern smartphone and laptop wall plugs from Apple, Samsung, and Anker rely on the USB-C Power Delivery (PD) protocol. A smart PD charger requires a digital handshake before releasing power. It searches for two tiny 5.1k ohm pull-down resistors on the CC1 and CC2 pins inside the device. The R36S charging circuit omits these resistors to keep manufacturing costs down. Without that signal, the smart PD brick supplies 0V. As a result, the console receives zero current.

Second, players accidentally connect their charging cord to the right-side OTG port. This right port labeled OTG is wired exclusively for data accessories. You use it for Wi-Fi dongles or external controllers. Only the left port labeled DC connects directly to the internal charging chip. Plugging a charger into the OTG port delivers no power to the battery.

To revive an R36S that refuses to charge, follow this three-step hardware sequence:

1. Switch to a USB-A to USB-C Cable and a 5V/1A-2A Brick: Put away your modern phone cord. Pick up a standard rectangular USB-A to USB-C cable. Plug the USB-A end into a basic 5V/1A (5W) or 5V/2A (10W) wall brick. A PC USB port also works well.
2. Connect to the Left DC Port and Check the Red LED: Insert the USB-C plug firmly into the left-side DC port on the bottom edge. Look at the center LED indicator between the Select and Start buttons. It should glow solid red immediately. That red light confirms that steady 5V power is entering the battery.
3. Let a Drained Battery Pre-Charge for 30 Minutes: If your battery reached 0%, the ArkOS 2.0 system will not boot right away. The screen stays off until cell voltage recovers above 3.45V. Leave the console charging on the DC port for 20 to 30 minutes. Then hold the Power button for two seconds. If the blue LED turns on but the screen stays dark, your battery is healthy. In that case, your stock SD card needs the display driver fix in our R36S Black Screen Fix Guide.

How to Charge the R36S Safely: The 5V/1A-2A USB-A to USB-C Rule

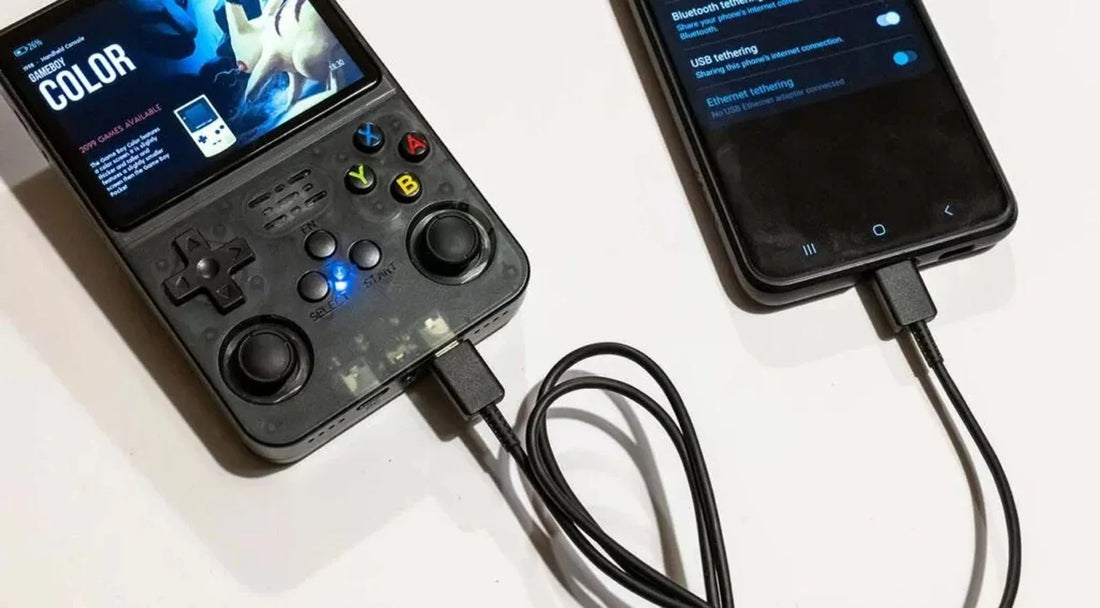

Charge the 2Bluebox R36S ($79.99, 2bluebox.com) for 2.5 to 3 hours using a 5V/1A-2A USB-A to USB-C adapter in the left DC port until the red LED turns off.

The R36S uses a basic charging circuit without an on-screen charging graphic. Therefore, you must monitor the front LED light to track your battery status.

As documented in the ArkOS Official FAQ and the Handhelds Wiki R36S ArkOS Guide, each LED state signals a specific operating condition:

• Solid Red LED (Console Off & Plugged In): The battery is charging normally. Recharging an empty battery takes 2.5 to 3 hours using a 5V/2A adapter.
• LED Turns Off (Console Off & Plugged In): The battery has reached full capacity. The internal chip halts incoming current at 4.2V. You can safely unplug the cable.
• Solid Blue or Green LED (Console On): Indicates normal gaming operation under ArkOS 2.0.
• Flashing Red LED During Gameplay: Warns of low battery power below 15% capacity. Save your game progress right away. Then exit via Start → Quit → Shutdown and connect your charger.

Table 1 summarizes how different power adapters behave with the R36S charging circuit, alongside expected battery runtime across emulator tiers:

Table 1: R36S Charger Compatibility & Real-World Battery Runtime by System. "Tested on our unit" means we checked it on a device we own. "Manufacturer spec" means the maker states it and we haven't verified it ourselves. "Community reports" means players report it, and results can vary.

R36S Battery Replacement & Upgrade Specs: 804065 LiPo Size & JST 1.25mm Polarity

The R36S uses a removable 3.7V 3200mAh to 3500mAh 804065 Lithium-Polymer battery pack with a 2-pin JST 1.25mm plug accessible through the rear snap-off cover.

Many modern handhelds glue their batteries deep inside the shell. In contrast, the R36S uses a convenient snap-off battery door on the back cover. You can replace an aging pack in less than two minutes. The entire job requires zero soldering.

Our R36S Hardware Teardown Guide details the internal layout of the console. When shopping for a replacement battery, avoid exaggerated online claims of "5000mAh". A battery of that capacity cannot fit inside this pocket casing. Instead, match these four technical requirements:

• Chemistry & Voltage: Rechargeable Lithium-Polymer (LiPo) pouch cell with 3.7V nominal voltage. Ensure the pack features an integrated protection circuit board against overcharging and short circuits.
• Physical Dimensions (804065): Maximum 8mm thick, 40mm wide, and 65mm long. The plastic battery bay has very tight tolerances. Any cell thicker than 8.5mm will prevent the rear battery cover from latching shut.
• True Capacity Range (3200mAh to 3500mAh): Within this specific physical footprint, genuine high-grade cells hold between 3200mAh and 3500mAh. This matches the factory pack used in RG351V handhelds.
• Connector Format: 2-pin JST 1.25mm (Micro JST) female plug.

Starting with a bench-tested unit saves you from dealing with degraded battery cells or faulty charging ports right out of the box:

How to Extend R36S Battery Life & Why Bench-Tested Hardware Matters

Lowering IPS screen brightness to 40-50%, unplugging OTG Wi-Fi dongles after scraping, and using ArkOS Shutdown System instead of standby extends R36S battery life by up to 90 minutes.

Two components consume most of your battery power during daily play: the bright 3.5-inch IPS backlight and external USB accessories. You can gain 60 to 90 minutes of extra playtime by adopting three simple habits from our R36S User Manual:

1. Lower Screen Brightness to 40%-50% Indoors: At maximum brightness, the IPS screen draws heavy current. Indoor gaming rarely requires full backlighting. Open Start → Display Settings in EmulationStation (or hold FN + Vol -). Set the brightness between 40% and 50% to reduce drain.
2. Remove Your USB Wi-Fi Dongle When Offline: External Wi-Fi dongles draw steady power from the right OTG port. This happens even when you play offline retro games. Unplug the adapter as soon as you finish updating firmware or downloading box art.
3. Perform a Full System Shutdown: Tapping the Power button triggers sleep mode. However, standby still drains 5% to 8% battery per hour. If you plan to pause for more than thirty minutes, save your game. Then press Start → Quit → Shutdown to cut all power draw.

Component quality determines whether your handheld lasts for years or fails during its first week. Many budget marketplace listings cut corners on internal parts. Some ship with cheap 2000mAh cells relabeled as 3200mAh. Others include failing SD cards that corrupt during sleep mode and mimic battery failure. Table 2 details how our verified 2Bluebox units compare against generic marketplace clones:

Table 2: 2Bluebox Verified R36S ($79.99) vs. Unverified Marketplace Clones. "Tested on our unit" means we checked it on a device we own. "Manufacturer spec" means the maker states it and we haven't verified it ourselves. "Community reports" means players report it, and results can vary.

Compare our three bench-tested 2Bluebox retro consoles below if you are deciding between portable gaming, plug-and-play TV multiplayer, or 3D PS2 and GameCube power on a PC:

Frequently Asked Questions (FAQ)

Conclusion

Fixing an R36S that refuses to charge rarely requires replacement components. Swapping out your fast phone charger for a standard 5V/1A-2A USB-A to USB-C cable usually solves the issue immediately. Plug into the left-side DC port, confirm the solid red LED, and enjoy four to six hours of portable gaming per charge.

If you want a handheld that arrives fully inspected and ready to play, explore our R36S Games List. Every 2Bluebox console undergoes a complete battery health and charging circuit check before shipping from Colorado.

Plug into the left DC port, wait for the red LED to turn off, and Press Start.
