R36S SD Card Replacement Guide: TF1/TF2 Compatibility List & 1-Card vs. 2-Card Setup

Below is the slot-by-slot compatibility list, the 1-card versus 2-card decision, and the backup routine that keeps your screen working when you swap cards.

R36S MicroSD Card Compatibility List: Why Slot TF2 Rejects SanDisk Ultra Cards

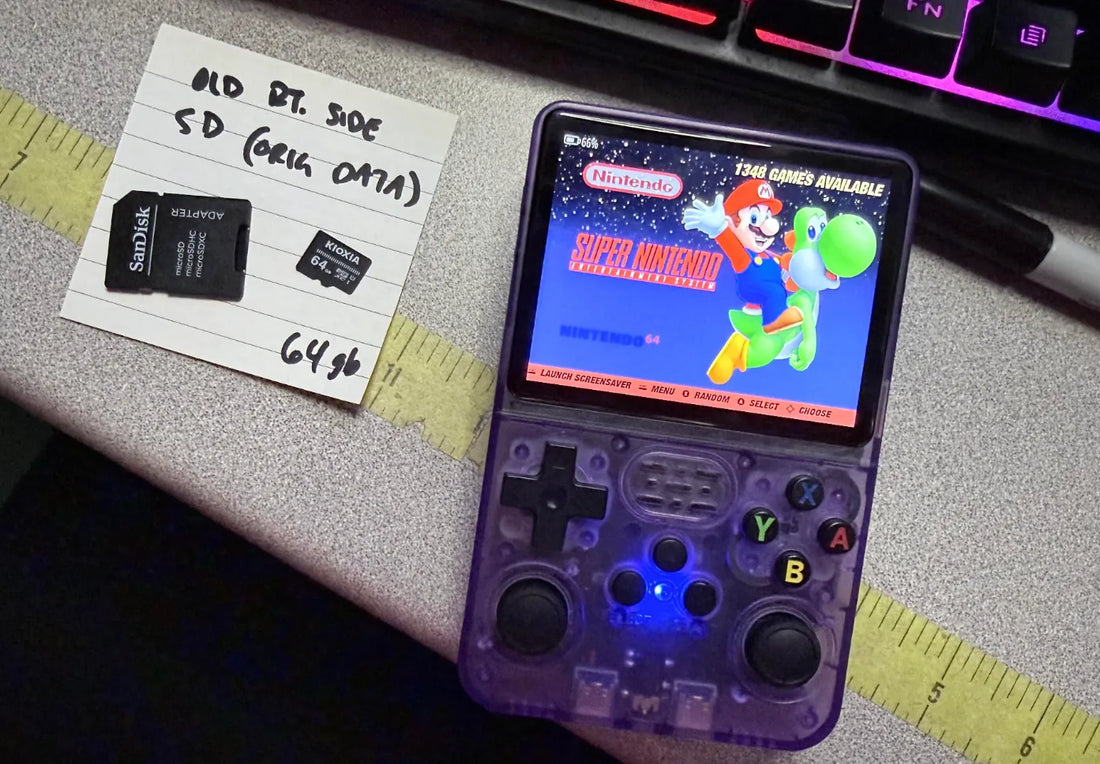

The right-side TF1-OS slot accepts almost every major microSD brand, while the left-side TF2-GAME slot only recognizes certain cards and turns away most larger SanDisk Ultra and Extreme models.

The first warning on the Handhelds Wiki R36S compatibility page is blunt: the microSD cards that ship with these consoles cause a lot of problems and can fail at any time. So most owners replace the stock card sooner or later. Trouble starts when someone buys a brand-new 128GB SanDisk Ultra, clicks it into the left-side TF2-GAME slot, and watches ArkOS act as if the slot is empty.

The community list makes the pattern clear. Any genuine card should work in the right-side TF1-OS slot, while the left-side TF2-GAME slot only gets along with certain card controllers. Nobody has published a definitive engineering cause, so treat TF2 as a list to check before you buy, not something you can guess from the label:

Once you separate what works in the right TF1-OS slot from what works in the left TF2-GAME slot, choosing a replacement card takes less than a minute.

Before you buy a new card, check the slot-by-slot table below, built from the Handhelds Wiki R36S microSD compatibility list:

Table 1: R36S MicroSD Card Brand Compatibility Matrix (Slot TF1-OS vs. Slot TF2-GAME). "Tested on our unit" means we checked it on a device we own. "Manufacturer spec" means the maker states it and we haven't verified it ourselves. "Community reports" means players report it, and results can vary.

Look at the SanDisk rows in Table 1: those cards are not defective. They simply don't get along with the left slot, and testers report the same result across many batches. If you already own a 64GB, 128GB, or 256GB SanDisk Ultra, put it in the right-side TF1-OS slot and it will run ArkOS 2.0 and your games normally. For a full tour of the console's slots and buttons, see our complete R36S user manual and hardware setup guide.

Setting Up an R36S New SD Card: 1-Card (TF1 Only) vs. 2-Card (TF1 + TF2) Pros & Cons

A single-card setup in slot TF1 is the simplest plug-and-play option, while a dual-card setup keeps the ArkOS system on one card and your ROM library on another.

ArkOS splits its card into a small BOOT partition, a hidden Linux system partition, and the visible EASYROMS game partition. The second slot lets you move that game partition onto its own card, so a corrupted or re-flashed system card never takes your library down with it.

Use this three-step decision flow to pick the storage layout for your R36S new SD card:

1. Choose a 1-Card Setup (TF1-OS Only) If You Want Zero Hassle: Flash ArkOS 2.0 onto a single 64GB to 256GB card (SanDisk Ultra and Samsung EVO both work here) and insert it into the right-side TF1-OS slot. Leave the left TF2-GAME slot empty.
2. Choose a 2-Card Setup (TF1 + TF2) If You Tinker With Firmware: Put a small 16GB or 32GB card in the right TF1-OS slot for ArkOS, and a 64GB to 128GB Samsung EVO or Silicon Power card in the left TF2-GAME slot for ROMs and saves. Those are the sizes the Handhelds Wiki recommends.
3. Stick to UHS-I (U1 or U3 / A1 or A2) Cards: Under the SD Association speed and application performance class standards, A1 and A2 cards are rated for fast random small-file access, which is what EmulationStation does when it scrolls a library of 15,000+ games. Pricier pro camera cards add nothing you'll notice here.

Compare both layouts side by side in Table 2 before you format anything:

Table 2: R36S 1-Card Setup (TF1 Only) vs. 2-Card Setup (TF1 + TF2) Comparison. "Tested on our unit" means we checked it on a device we own. "Manufacturer spec" means the maker states it and we haven't verified it ourselves. "Community reports" means players report it, and results can vary.

For most players who just want PlayStation 1, Game Boy Advance, SNES, and Nintendo DS games without swapping operating systems every week, the 1-Card Setup in slot TF1-OS is cleaner, cheaper, and sidesteps every TF2 compatibility question.

Doing all of this yourself means buying a new card and a USB reader, downloading a multi-gigabyte ArkOS image, and spending an evening matching .dtb files to your screen panel. Get one file wrong and you're staring at a dark screen with the menu music still playing. Our 2Bluebox R36S Handheld ($79.99) skips that evening: it arrives with a genuine Rockchip RK3326 board, ArkOS 2.0 display files already matched to its screen, and a checked card holding 15,000+ games, plus tracked shipping to the US, UK, Canada, Australia, and the EU and a 30-day replacement guarantee.

How to Clone Your Stock R36S SD Card & Back Up the BOOT (.dtb) Files

Back up the .dtb display driver files from your original BOOT partition before you flash or clone a new card, and your R36S screen will light up on the first boot.

Why do so many R36S owners get a black screen with background music after flashing a fresh ArkOS image? Because the R36S has shipped with four different 3.5-inch IPS screen revisions (Panel 1 through Panel 4), and the driver for your specific screen lives in the BOOT partition of the card that came with your console.

Before you format a new card or retire the original, follow this four-step backup and flash routine:

1. Back Up Your Original BOOT Partition First (Required Step): Eject the stock card from the right-side TF1-OS slot and insert it into a USB card reader on your computer. Open the small drive labeled BOOT and copy every file inside it (especially rk3326-r35s-linux.dtb, rk3326-r36s-linux.dtb, and boot.ini) into a desktop folder named R36S_BOOT_BACKUP.
2. Copy Your EASYROMS Game and Save Folders to Your PC: Open the second drive labeled EASYROMS and copy your ROM folders (including bios and any .srm or .state save files) into a folder named R36S_ROMS_BACKUP.
3. Flash ArkOS 2.0 (or Clone Your Image) Using Rufus: Insert your new card into the USB reader. Use the free Rufus image writing utility (or Win32DiskImager) to write either a fresh ArkOS 2.0 .img file or a full .img backup of your stock card.
4. Restore Your Original .dtb File and Expand EASYROMS: If you flashed a fresh image and the screen stays dark on first boot, copy your backed-up .dtb and boot.ini files into the new card's BOOT partition. Insert the card into the right-side TF1-OS slot, power on, and give ArkOS a few minutes to expand EASYROMS across the rest of the card.

If you've lost your original .dtb files or the screen stays dark with the blue LED on, our R36S black screen fix and Panel 1-4 .dtb recovery guide walks you through finding the right file for your panel. To keep the system itself current, see our guide to updating R36S ArkOS 2.0 firmware.

Every time an R36S card goes into a Windows computer, keep this warning in mind:

How to Activate Slot TF2 in ArkOS ("Switch to SD2 for ROMs" Step-by-Step)

Format a compatible Samsung or Silicon Power card to exFAT, insert it in the left TF2-GAME slot, and run "Switch to SD2 for ROMs" from the ArkOS Options menu.

Dropping a card full of ROMs into the left-side TF2-GAME slot does nothing on its own. As the official ArkOS FAQ on using the second SD slot explains, ArkOS keeps reading games from TF1 until you run its slot-switching script.

Follow these four steps to set up your second TF2-GAME card:

1. Format a Compatible TF2 Card to exFAT: Insert a Samsung EVO Select, EVO Plus, Silicon Power, or PNY card into your PC and format it as a single exFAT partition. ArkOS also accepts FAT32, NTFS, and EXT4, but its own docs name exFAT among the best performers.
2. Insert the Card Into the Left TF2-GAME Slot: Shut down the R36S cleanly. Keep your ArkOS card in the right-side TF1-OS slot, peel back any sticker over the left-side TF2-GAME slot, click the new card in, and power the console on.
3. Run Options -> Advanced -> Switch to SD2 for ROMs: On the main EmulationStation wheel, open Options, select Advanced, and choose Switch to SD2 for ROMs. ArkOS mounts the card and creates any missing console folders (nes, snes, gba, psx, nds, psp, bios) without overwriting files already on it.
4. Copy Your bios and Game Folders to the TF2 Card: The switch builds folders only; it doesn't move your games. Shut down (Start -> Quit -> Shutdown System), take out the TF2 card, copy your bios folder and ROMs into the new folders on your PC, eject safely, and click it back in.

Two details trip people up after the switch. First, emulators such as PlayStation 1 (psx) and Nintendo DS (nds) now look for BIOS files on the second card under /roms2/bios/, so copy that folder over. Second, ArkOS now expects both cards at startup, so pulling the TF2 card will stop the console from booting until you put it back. For folder-by-folder file rules (.chd, .pbp, .gba, .nds), read our guide to adding new games to your R36S.

With a reliable card in place, our R36S Wi-Fi OTG dongle and Android USB tethering guide helps you scrape box art straight onto it, and the R36S ArkOS hotkeys cheat sheet keeps your exits and save states clean.

Your R36S now runs on a card you can trust, but it's still a one-player, pocket-sized screen. When your kids or a friend want in on a Friday night, passing a 3.5-inch handheld back and forth gets old fast. A second console that plugs straight into the TV with two wireless controllers fixes what a small screen can't, so compare both bench-checked 2Bluebox options below:

Frequently Asked Questions (FAQ)

Conclusion

A good R36S SD card is one of the cheapest ways to protect hundreds of hours of RPG saves and a carefully built game list. Reach for Samsung EVO Select, EVO Plus, Silicon Power, or PNY when you shop for the picky left-side TF2-GAME slot, let a SanDisk Ultra you already own run in the right-side TF1-OS slot, and back up your original BOOT files before you flash anything.

Back up your BOOT files once, click in a fresh card, and Press Start.
